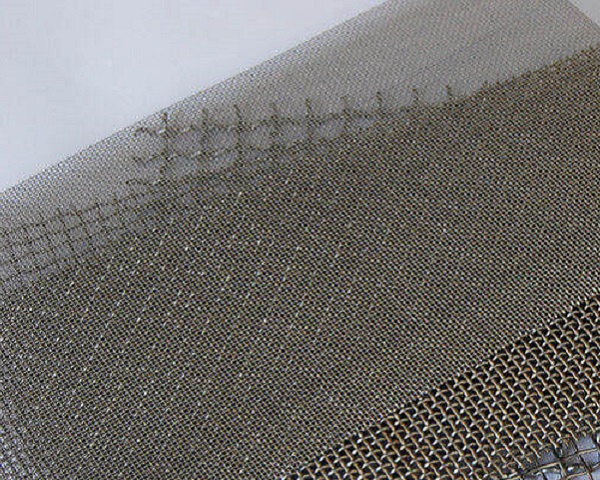

Nichrome Wire Mesh Quick Details:
- Usage: Resistor Elements
- Material: UNS N06003
- MOQ: 1 roll
- Woven style: Plain and Twill Weave
- Mesh : 2-325Mesh
- Diameter: 0.05mm-2.0mm
- Roll Width: 0.1m-1.5m
- Roll Length: 10-100m
- Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
- Delivery Time: 5 days for stock material
DETAIL INFORMATION
The Nichrome V, also known as “Nichrome 80-20” is a combination of nickel and chromium alloy materials and is ideal for applications on resistors that are on high operating temperatures due to its resistance to high electrical and low temperature coefficient.
Applications:
- Radiant heater
- Electric furnace
- Electrical industry
- Oven
Nichrome Wire Mesh Specifications
| Nichrome Wire Mesh (NiCr wire mesh) | ||
| Mesh/Inch | Wire Gauge(SWG) | Aperture(mm) |
| 3 | 14 | 6.27 |
| 4 | 16 | 4.27 |
| 5 | 18 | 3.86 |
| 6 | 18 | 3.86 |
| 8 | 20 | 2.26 |
| 10 | 20 | 1.63 |
| 20 | 30 | 0.95 |
| 30 | 34 | 0.61 |
| 40 | 36 | 0.44 |
| 50 | 38 | 0.36 |
| 60 | 40 | 0.30 |
| 80 | 42 | 0.21 |
| 100 | 44 | 0.172 |
| 200 | 47 | 0.076 |
| 325 | 48 | 0.037 |
