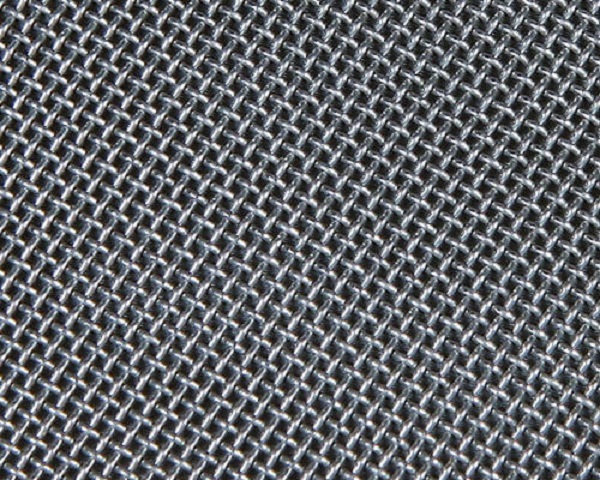

Kanthal Wire Mesh Quick Details:
- Usage: Fever material for industrial furnace, household appliances, infrared device etc.
- Material: 1Cr13AL4,1Cr12AL4 ,0Cr21AL6, 0Cr23AL5 ,0Cr25AL5, 0Cr21AL6Nb, 0Cr27AL7Mo2.
- MOQ: 1 roll
- Woven style: Plain and Twill Weave
- Mesh : 2-200Mesh
- Diameter: 0.06mm-1.8mm
- Roll Width: 0.1m-1.5m
- Roll Length: 10-100m
- Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
- Delivery Time: 5 days for stock material
DETAIL INFORMATION
The metal Kanthal is widely known for its heat resistant properties and primarily used for electrical and other heating materials. The metal alloy currently offered by Hebei Hightop Wire Mesh includes – 1Cr13AL4, 1Cr12AL4, 0Cr21AL6, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb, 0Cr27AL7Mo2.
Features:
- Longer life
- Higher resistance to heat than 80 nickel alloy and 20 chromium
- Higher operating temperature
- Excellent corrosion resistance when exposed to high temperature especially if exposed to sulfides
Applications:
- Gas burners/other household appliances
- Catalyst and corrosive atmosphere
- Infrared Devices
- Industrial Furnaces
Kanthal Wire Mesh Specification
| Specification | Aperture mm | Wire Diameter mm | Roll Width m | Weight kg/m2 | |
| Mesh | Wire Gauge | ||||
| 8(T) | 21 | 2.375 | 0.8 | 1.0 | 2.5 |
| 8(T) | 22 | 2.475 | 0.7 | 1.0 | 1.84 |
| 10(T) | 23 | 1.94 | 0.6 | 0.6 | 1.69 |
| 12(T) | 24 | 1.557 | 0.559 | 1.0 | 1.8 |
| 17(T) | 24 | 0.94 | 0.55 | 0.6 | 2.57 |
| 20(P) | 33 | 1.02 | 0.25 | 1.0 | 0.587 |
| 20(P) | 32 | 1.0 | 0.27 | 1.0 | 0.685 |
| 20(P) | 30 | 0.97 | 0.30 | 1.0 | 0.846 |
| 25(P) | 30 | 0.71 | 0.30 | 1.0 | 1.125 |
| 30(P) | 38 | 0.69 | 0.15 | 1.0 | 0.30 |
| 34(P) | 33 | 0.49 | 0.25 | 1.0 | 1.06 |
| 40(P) | 35 | 0.425 | 0.21 | 1.0 | 0.83 |
| 40(T) | 35 | 0.425 | 0.21 | 1.0 | 0.83 |
| 44(T) | 35 | 0.367 | 0.21 | 1.0 | 0.88 |
| 60(T) | 38 | 0.273 | 0.15 | 1.0 | 0.66 |
| 80(P) | 43 | 0.227 | 0.09 | 1.0 | 0.324 |
