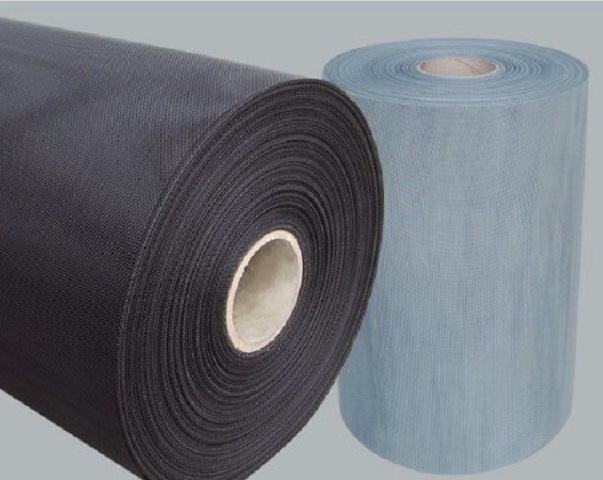

Epoxy Coated Filter Wire Mesh:
- Usage: Hydraulic or air filters (as the supporting layers)
- Material: Plain Steel Wire Mesh, Stainless Steel Wire Mesh and Aluminum Alloy Wire Mesh
- Color: Normally dark grey and black, other color can be ordered
- MOQ: 1 roll
- Woven style: Plain Weave
- Mesh : 16×16, 18×16, 18×18, 18×14, 26x 22,24×24,30×30
- Diameter: BWG30, 31, 32, 33, 34, 35, 36, 37, 38, 39.
- Roll Width: 0.58 m, 0.754 m, 0.876 m, 0.965 m, 1.014 m,1.05 m,1.1 m, 1.22 m, 1.25 m etc.
- Roll Length: 10-300m
- Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
- Delivery Time: 5 days for stock material
DETAIL INFORMATION

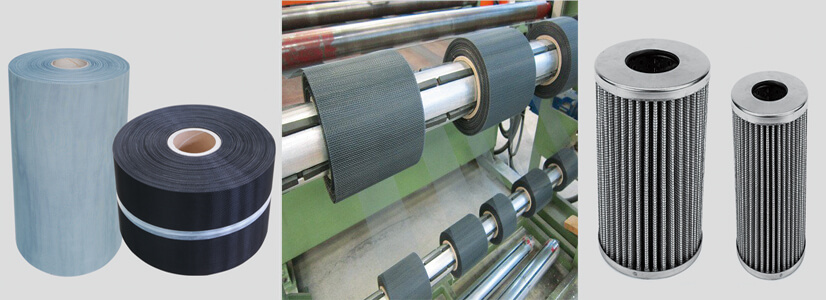

Epoxy coated filter wire mesh is mainly composed of plain steel wires woven together and coated with quality epoxy resin powder through the electrostatic spraying process to make this material resistant to corrosion and acids. The epoxy coated wire mesh is usually used as a support layer for the filtering which replacing galvanized wire mesh and is ideal due to the stability of the structure as well as its affordability,it’s the main part of filters.
Materials
- Plain steel wire mesh
- Stainless steel wire mesh
- Aluminum wire mesh
- Epoxy powder
Epoxy Coated Filter Wire Mesh Specification
Mesh | Wire Dia. | Width | Length |
14 x 14 | BWG 31/32 | 0.6 – 1.5 m | 100- 500 feet |
16 x 14 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
16 x 16 | BWG 31/32 | 0.6 – 1.5 m | 100- 500 feet |
18 x 14 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
18 x 16 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
18 x 18 | BWG 31/32 | 0.6 – 1.5 m | 100 – 500 feet |
20 x 20 | BWG 32/33 | 0.6 – 1.5 m | 100 – 500 feet |
22 x 22 | BWG 32/33 | 0.6 – 1.5 m | 100 – 500 feet |
24 x 24 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
28 x 28 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
30 x 30 | BWG 33/34 | 0.6 – 1.5 m | 100 – 500 feet |
Mesh Properties
- Coating Stability
- Resistant to corrosion
- Easy of pleating
- Compatibility with different hydraulic oil media
- Flexible coating layer
- Durable under high temperature and high pressure
- Different colors available and color is even and consistent.
